The packing machine can not only save labor, improve production efficiency, but also reduce the production area, the packing machine is connected before the unpacking machine, and the sealing machine is connected after the three machines are connected, and the floor area is small, and one person can operate the unpacking, packing and sealing station operation. Greatly reduce labor costs, management costs.

Basic operating specifications for packing machines

For general enterprises, it can be said that the initial investment is large, usually small and medium-sized enterprises attach great importance to the investment of the packaging machine, but the real production must have professional and technical personnel, the following is a brief introduction:

First, before production, check whether the components in the main body of the equipment are normal, whether the fixing screws of each cylinder are fastened, whether there are foreign bodies on the belt of the belt conveyor, and carry out certain refueling and lubrication treatment of the necessary parts.

Second, open the main valve switch, and confirm that the air pressure is within the range of 0.6 ~ 0.8Mbra, and the bottle head air pressure is about 0.2Mbra. Power on the control cabinet. Press the power button on the control cabinet, and the internal power equipment is powered on.

Third, after pressing the power button, the empty box and full box transmission line will start to run. Place empty boxes on the empty box line of the lower part of the main engine, and ensure that there are always more than two empty boxes on the empty box line during the operation of the production line. The touch screen prompts you to adjust the required product model. You can perform other operations only after the adjustment is complete.

Fourth, start the simulation run, enter the manual page, press the bottle ban switch to bottle allow. The three detection boxes are opened and covered with items to ensure that the indicator lights are on. Enter the automatic page, open the simulation operation and switch to the automatic mode, press the start operation of the operation panel, and the equipment starts to perform the simulation operation.

Fifth, start production operations normally. Enter the manual page, press the bottle high and low position on the high level of the bottle in the forbidden position to press the point into the bottle slowly into the bottle until the bottle is full (if there is a bottle to help up in time). Press the high and low position of the pressure bottle at the low level, press the bottle management to switch to bottle management permit, switch the manual page to press the full bottle, press the point to manage the bottle, after the completion of bottle management, check whether the set value of one to five bottles on the parameter page is the same as the actual value (the actual value must be greater than or equal to the set value) if the actual value is less than the set value, please change the set value, but under normal circumstances, the set value is 11. Press the grasping head to check whether the grasping head is closed (it must be closed), click the main engine to lower and observe whether the grasping head is aligned with the bottle, switch to the automatic page after the alignment, click the manual mode to switch to the automatic mode, and press the operation panel to start running the packing machine factory to enter the automatic work.

Sixth, stop processing. When the bottle behind can not keep up with the time or to stop, after the bottle head is put in the bottle, the bottle head rises to the position, the rocker arm moves backward immediately press the stop button on the operation panel, and the packing machine will be suspended or stopped. Manually reset each station, close the gas valve, and turn off the power switch.

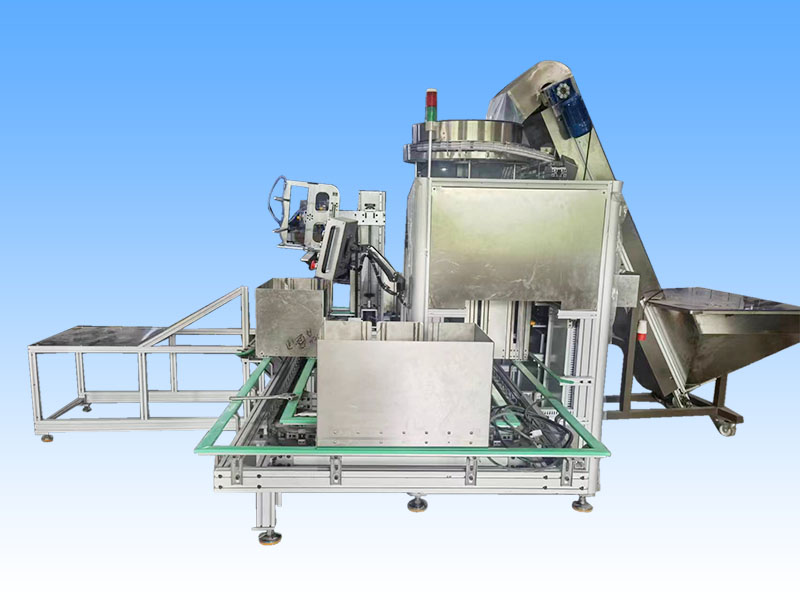

The packing machine is generally composed of a feed conveying line, a finishing line, a packing station, a carton conveying line, and a carton positioning device.

Through the introduction of foreign advanced technology, the domestic packing machine industry has greatly improved the variety, level and applicability of the packing machine products. The voltage regulator varieties produced by domestic enterprises include box packing machine, bottle and bag. In addition, with the continuous application of new materials and new processes, domestic packaging manufacturing enterprises have continued to develop and develop various structural forms of packing machines. Innovation will be a major development direction of the packaging machinery industry.

Packing machine has been from semi-automatic packing, to fully automatic, from low-speed pressure, to high-speed packing, from traditional mechanical to mechanical packing step by step breakthrough, step by step innovation, packing machinery industry breakthrough, innovation is also the responsibility for users. The more widely used the packing machine, the corporate responsibility and innovative technology of the packing machine will be the direction to be explored and developed for this industry.
