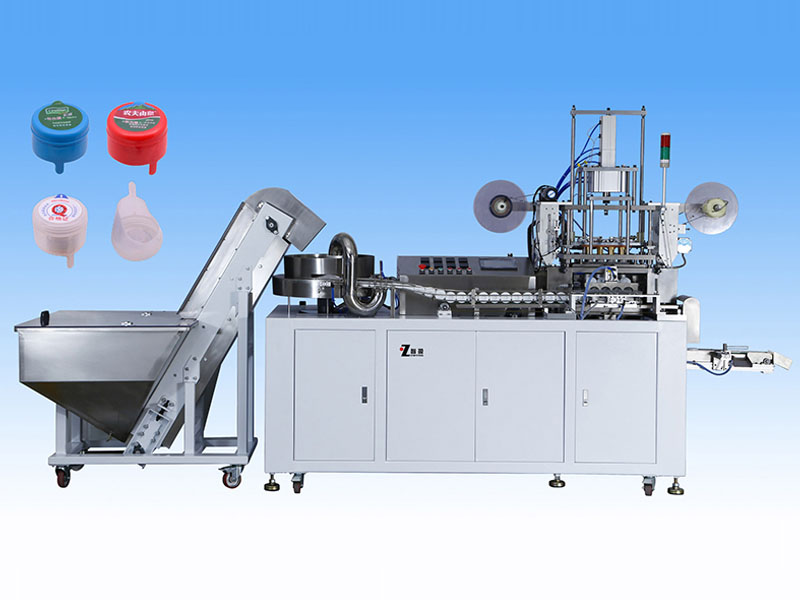

One four film machine

One four film machine

Product performance
Automatic cap of the whole circle, the whole tail function (Zhiying company patented technology): can automatically deformation of the bottle cap round, after the end of the automatic labeling; do not have to worry about deformation due to the bottle on the machine difficult;
Automatic stop waiting: no film or no bottle cap, the machine automatically shut down waiting; wait until there is a film and a bottle of the machine automatically boot;
Automatic clearance stop: press the "clear" function keys, the machine will automatically split the bottle on the bottle all the label and empty the label, the machine automatically shut down;
Automatic shutdown or box; production yield to set the output when the machine automatically shut down or box;
Automatic fault diagnosis: display the cause of the malfunction, automatic shutdown waiting;
Security protection: cover and secondary labeling area above, if foreign body into the security area, the machine automatically shut down protection;
Overheating protection: when the actual labeling temperature reaches or exceeds the set alarm value, the machine automatically shut down protection;
Product visual inspection: additional configuration, set their own product labeling quality standards, where the standard products are not, automatically removed.
voltage   AC 220V
Operating Voltage   AC 220V  and  DC 24V
Power   About 3kw
Air supply pressure   6-8kgf/c㎡
Working pressure   5.5-6kgf/c㎡
Yield   About 4500-5600 / hour
Machine specifications   2800×1000×1850mm
          Film (standard) specifications   Thick      0.05-0.10mm
    Width      57~70mm
    Center distance  58mm
